How to setup NT8 Market Analyzer Column with indicator plot.
How to use Ninjatrader Market Analyzer Column with indicator plot.
You can access the Market Analyzer window from within the NinjaTrader Control Center window by left mouse clicking on the menu New, and then selecting the menu item Market Analyzer.
After you open the Market Analyzer window, right click and select 'columns'.
You will see all available columns now. Make sure you select 'indicator' from the list as shown in the picture below:
.png)

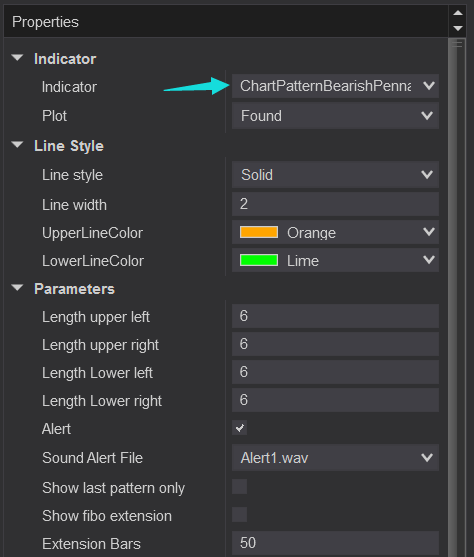

Next step you need to select the indicator you want to use, we use the ChartPatternBearishPennant in this example.
Please make sure you use exactly the same input from chart indicator if you need to check the result on chart.
.png)

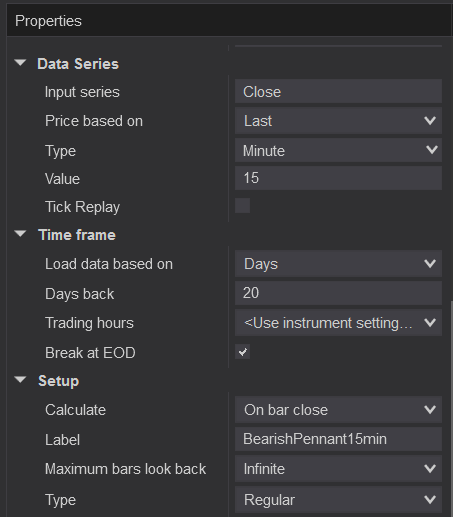

You can use different timeframe for each column and add more than one column by repeating this step.
You can also use different labels for each column, such as BearishPennant15min for a 15 minute Chart Pattern Bearish Pennant column.
Sometimes you need to load at least 5 days of data for minute type in order to make it working properly.
.png)
At the very bottom of the properties list, you can find the Conditions options.
In this case, we will need to use "Cell" option, just click on "0 conditions".
.png)

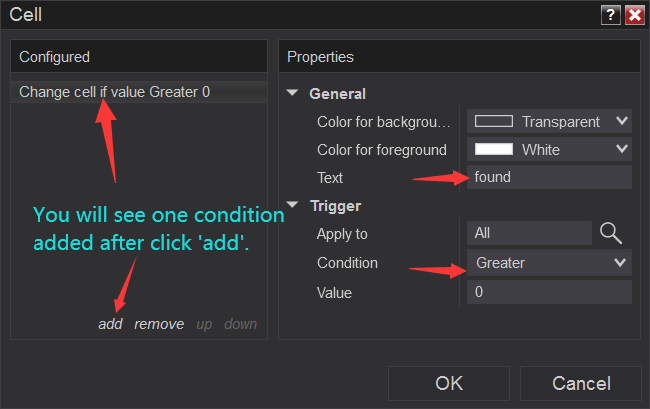

You should see a new window like this, click 'add' to add a new condition.
You can use any text as you want, I used "found" for demo purpose only.
Please choose "Greater" from the Condition list, it is for Chart Pattern Bearish Pennant indicator only, then click OK.
.png)

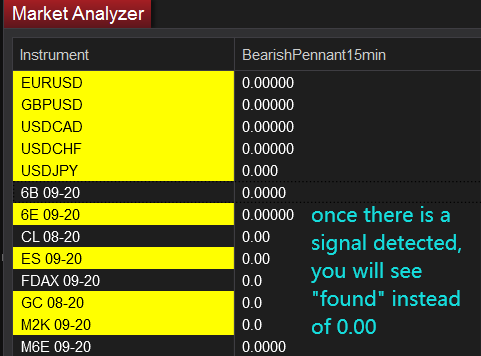

After you complete the setup of a column, it will show up in the Market Analyzer as a column.
.png)
We can also use the Market Analyzer as a scan by Creating Cell and Filter Conditions
https://ninjatrader.com/support/helpGuides/nt8/en-us/?creating_cell_and_filter_condi.htm
You can access the Market Analyzer window from within the NinjaTrader Control Center window by left mouse clicking on the menu New, and then selecting the menu item Market Analyzer.
After you open the Market Analyzer window, right click and select 'columns'.
You will see all available columns now. Make sure you select 'indicator' from the list as shown in the picture below:
Next step you need to select the indicator you want to use, we use the ChartPatternBearishPennant in this example.
Please make sure you use exactly the same input from chart indicator if you need to check the result on chart.
You can use different timeframe for each column and add more than one column by repeating this step.
You can also use different labels for each column, such as BearishPennant15min for a 15 minute Chart Pattern Bearish Pennant column.
Sometimes you need to load at least 5 days of data for minute type in order to make it working properly.
At the very bottom of the properties list, you can find the Conditions options.
In this case, we will need to use "Cell" option, just click on "0 conditions".
You should see a new window like this, click 'add' to add a new condition.
You can use any text as you want, I used "found" for demo purpose only.
Please choose "Greater" from the Condition list, it is for Chart Pattern Bearish Pennant indicator only, then click OK.
After you complete the setup of a column, it will show up in the Market Analyzer as a column.
The following is official video of Working with Columns.
For more info about Market Analyzer please visit:
https://ninjatrader.com/support/helpGuides/nt8/en-us/?market_analyzer.htmWe can also use the Market Analyzer as a scan by Creating Cell and Filter Conditions
https://ninjatrader.com/support/helpGuides/nt8/en-us/?creating_cell_and_filter_condi.htm
