Broadening Formation Chart pattern indicator for NinjaTrader 8

The Broadening Formation (also known as a Megaphone Top or Expanding Triangle) is a unique and powerful chart pattern that stands in stark contrast to the more common contracting patterns like triangles. Its usefulness lies in its ability to capture periods of extreme market volatility, indecision, and emotional trading.

Here’s a detailed breakdown of why it's a valuable tool for traders.

1. It Identifies a Market in Emotional Chaos and Rising Volatility

While most patterns show decreasing volatility (like triangles or pennants), the Broadening Formation does the opposite. It is a visual representation of a loss of control.

• What it shows: The pattern is formed by two diverging trendlines: a rising series of higher highs and a falling series of lower lows. This creates an expanding, megaphone-like shape.

• Why it's useful: It signals that the market is becoming increasingly unstable and emotional. Each new high is met with aggressive selling, and each new low is met with aggressive buying. This pattern often appears at major market tops or during periods of great fundamental uncertainty (e.g., around earnings reports for a volatile stock, or during geopolitical turmoil). It tells you that the market is not consolidating calmly but is instead whipping around wildly.

2. It Provides High-Probability, Actionable Reversal Signals

The primary utility of a Broadening Formation is its tendency to resolve with a trend reversal.

• What it shows: Although price swings are widening, the pattern typically breaks in the direction opposite of the preceding trend. For example, if it forms after a strong uptrend (a "Broadening Top"), the eventual breakout is usually to the downside.

• Why it's useful: It's an excellent warning sign of an impending trend change. A breakdown from a Broadening Top after a long rally can signal a significant top is in place. This allows traders to prepare for short positions or exit long positions.

3. It Offers Clear Entry, Stop-Loss, and Profit Target Levels

Like other patterns, it provides a structured framework for trade management.

• Entry Signal: The most common and reliable entry is on a close outside of the formation's trendlines. A close below the lower (descending) trendline signals a short entry. A close above the upper (ascending) trendline is less common but would signal a long entry.

• Stop-Loss: The logical place for a stop-loss is inside the formation, just on the other side of the broken trendline.

  • For a short trade after a breakdown, place the stop above the most recent swing low within the pattern or above the lower trendline.

  • This risk is well-defined but can be larger than in other patterns due to the pattern's widening nature.

• Profit Target: The most common measuring technique is to take the maximum height of the entire formation and project it downward from the point of breakdown.

  • Why it's useful: This provides a quantified, objective target for taking profits, allowing for clear risk-to-reward calculations before entering the trade.

Visual Example:
*(Imagine a chart showing a stock that had been in an uptrend. It then enters a period where it makes successively higher highs (e.g., $50, $55, $60) and successively lower lows (e.g., $45, $42, $40), creating a widening pattern. The price then breaks below the $40 support level on high volume. The height of the pattern at its widest point is $20 ($60 - $40). This $20 is projected down from the $40 breakout, giving a target of $20.)*

4. It Warns of a Dangerous Environment for Certain Strategies

This is a subtle but crucial use case.

• What it shows: The pattern is defined by false breakouts and whipsaw action within its boundaries.

• Why it's useful: It acts as a giant "caution" sign for trend-following and breakout traders. If you identify a broadening formation, it tells you that ** trading breakouts inside the pattern is likely to be unprofitable.** It encourages a patient approach: wait for the final, decisive breakout at the end of the pattern rather than trying to trade every swing within it.

Practical Trading Example (Broadening Top)

1. Identification: You spot a stock that has rallied to $100. It then begins making wild swings: a high at $105, a low at $90, a higher high at $110, a lower low at $85, and a final high at $115.

2. Entry: The price breaks below the most recent low of $85 and closes at $83 on surging volume. This is your signal to enter a short position. You sell short at $83.

3. Stop-Loss: You place a stop-loss order at $87, just inside the formation above the last swing low.

4. Profit Target: You measure the pattern's height at its widest point: $115 - $85 = $30. You project this $30 downward from the breakdown point (~$85). Your price target is $55 ($85 - $30).

5. Risk-to-Reward: You are risking $4 per share (to $87) to make $28 per share (to $55). This is a 7:1 reward-to-risk ratio, an excellent setup.

Crucial Limitations and Warnings

• Complexity and Rarity: It is a more complex pattern and less common than triangles or flags. It requires practice to identify correctly.

• Whipsaw Risk: The pattern is famous for generating false signals within its structure. The key is to wait for the final breakout confirmed by a strong volume spike.

• Volume is Key: Volume should expand on the swings within the pattern and must surge on the final decisive breakout. A low-volume breakout is suspect.

• It Can Be a Continuation Pattern: While typically a reversal pattern, it can sometimes appear in the middle of a trend as a continuation pattern. This makes the final breakout direction absolutely critical.

Comparison to Other Patterns

Summary: Why the Broadening Formation is Useful

In essence, the Broadening Formation is useful because it:

1. Diagnoses Volatility: It identifies a market transitioning from trend to chaos.

2. Predicts Reversals: It often signals a major trend change is imminent.

3. Provides a Trading Plan: It offers clear entry, stop-loss, and profit target levels.

4. Issues a Warning: It tells traders to avoid counter-trend strategies and wait for the final, high-probability breakout.

It is the chart pattern of choice for recognizing periods of peak uncertainty and capitalizing on the explosive move that typically follows.

This indicator will automatically detect Broadening Formation chart pattern.

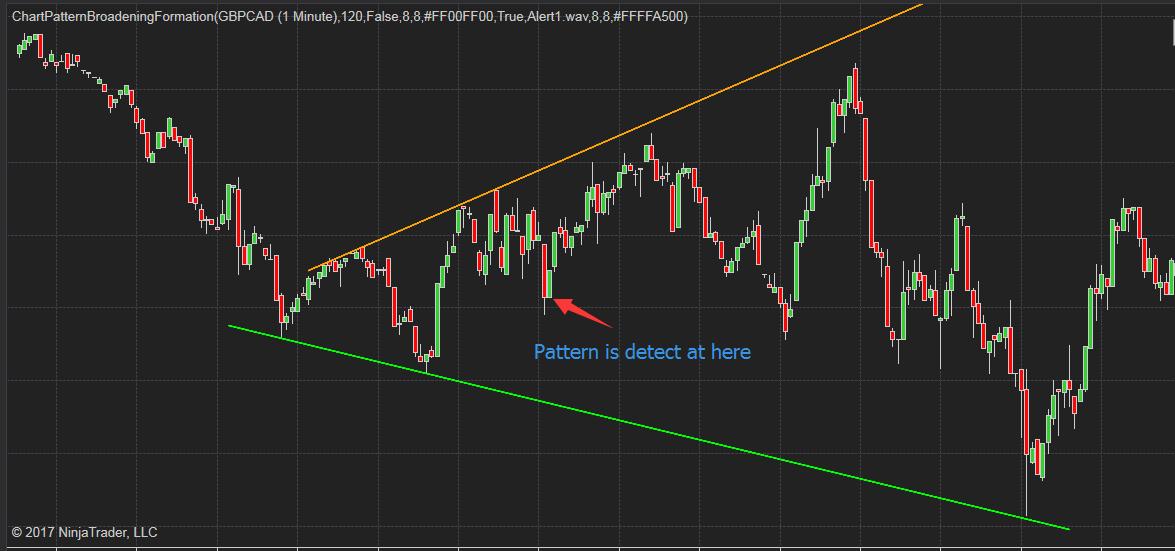

It will draw two trend lines of the Broadening Formation on the chart when the pattern is formed.



Features:

    Drawing Broadening Formation chart pattern for both real-time and historical data.
    Adjustable length of pattern legs.
    Using different combination of parameters, you can easily identify the Broadening Formation pattern in short term, midterm and long term.
    It works on most of the time frames and chart types, including: minutes, daily, weekly, monthly, tick, renko, range, Heiken Ashi, etc.
    Adjustable length of extension lines.
    Switch for showing the latest pattern only or show all history patterns found on chart.
    Select different sound alert files with switch.
    Editable trend line color.

There is a plot that can be used from other NinjaScript, such as Strategy and Market Analyzer.
They will show up on current bar, no delay, no repaint or back-paint.

In default, the color is transparent, if you need to see the plots on the chart, just change its color to your desired ones.

 Broadening formation, also known as a megaphone pattern, is a technical analysis pattern characterized by increasing volatility and higher highs and lower lows.
 Steps to use the indicator:

**Understanding the Pattern**:
    - The pattern consists of at least two higher highs and two lower lows.
    - When connected, the highs and lows form two diverging trendlines (one ascending and one descending) that form a megaphone shape.
    - It indicates a market with increasing volatility and uncertainty.

**Indicator Functionality**:
    - The indicator will automatically scan the price chart and identify potential broadening formation patterns.
    - It draws the two diverging trendlines: one connecting the rising peaks (resistance) and the other connecting the declining troughs (support).

**Interpreting the Pattern**:
    - **Breakout Direction**: Broadening formations can break out in either direction. The pattern is considered complete when the price breaks either the upper or lower trendline.
    - **Confirmation**: Wait for a candlestick to close beyond the trendline to confirm the breakout.
    - **Price Target**: There is no fixed price target for broadening formations. However, some traders measure the height of the pattern at its widest point and project that from the breakout point.

 **Cautions**:
    - Broadening formations are relatively rare and can be difficult to trade because of the high volatility.
    - False breakouts are common. Therefore, it's essential to use additional indicators for confirmation.
    - Volume should ideally increase on the breakout to confirm the move.

**Combining with Other Tools**:
    - Use volume indicators: Breakout on high volume is more reliable.
    - Oscillators: If RSI or Stochastic is overbought/oversold at the breakout point, it might add confirmation.
    - Moving averages: A breakout that also crosses a key moving average (e.g., 50-day or 200-day) might be stronger.
 Remember: Technical patterns are not foolproof. Always use risk management and consider the overall market context.


Breakout Confirmation

    Bullish Breakout: Price closes above the upper trendline → Potential uptrend.

    Bearish Breakout: Price closes below the lower trendline → Potential downtrend.

Avoid Common Pitfalls

    False Breakouts: 30-40% of broadening formations fail. Always use stop-losses.

    Volatility: Avoid trading during news events if noise distorts the pattern.





Click an image to view at full size.
