Falling Wedge Chart pattern indicator for NinjaTrader 8

The Falling Wedge is a powerful and versatile chart pattern that is highly valued by traders because it can signal both a reversal of a downtrend and a continuation of an uptrend. Its usefulness stems from its ability to identify a compression in volatility that often leads to a significant explosive move.

Here’s a detailed breakdown of why it's such a valuable tool for traders.

1. It Captures a Specific Market Psychology: Exhaustion of Sellers

The pattern tells a story of a losing battle between sellers and buyers, where sellers are rapidly losing momentum.

• What it shows: The pattern is formed by two converging, descending trendlines. Both the highs and the lows are falling, but the lows are falling at a slower rate than the highs. This causes the wedge to slope downward and contract.

• Psychology:

  • In a Downtrend (Reversal Signal): The initial sharp decline represents strong selling pressure. As the wedge forms, each new low is less severe, and the selling waves become weaker (often on declining volume). This indicates that sellers are exhausting themselves while buyers are starting to step in at progressively higher prices, creating a bullish divergence.

  • In an Uptrend (Continuation Signal - Bull Flag variant): This represents a healthy pullback within a larger uptrend. The downward slope indicates profit-taking, but the converging nature shows that the pullback is shallow and buyers are absorbing the selling pressure, ready to resume the dominant uptrend.

• Why it's useful: It frames a downward move not as a resumption of a bear trend, but as a weakening of selling pressure and a potential "coiling" of price energy. This prevents you from oversimplifying a weakening decline as ongoing bearish momentum.

2. It Provides a Clear, High-Probability Entry Signal

The entire purpose of identifying the wedge is to prepare for the potential bullish explosion.

• The pattern is confirmed when the price breaks above the upper, steeper trendline of the wedge.

• Why it's useful: It offers a precise, objective entry point for a long trade. The breakout signifies that the compression period is over and buyers have decisively won the battle. The tighter the coil (the more the wedge contracts), the more powerful the eventual breakout tends to be.

3. It Offers a Measured Price Target

This is a critical feature for profit-taking and risk management. The Falling Wedge provides a quantifiable profit-taking objective.

• How it works: You measure the height of the wedge at its widest point (the initial high to the initial low of the pattern). This same distance is then projected upward from the point of the breakout.

• Why it's useful: It allows you to calculate the potential reward before you enter the trade. This is essential for determining if the trade offers a favorable risk-to-reward ratio.

Visual Example:
(Imagine a chart where a stock begins its wedge with a high of $50 and a low of $40—a $10 range. The wedge converges over time. The price finally breaks above the upper trendline at $43. The $10 height is projected upward from $43, giving a minimum target of $53.)

4. It Enables Excellent Risk Management

The pattern’s well-defined structure provides a logical level for a stop-loss order.

• How it works: The most logical place for a stop-loss is just below the lower, slower-rising trendline of the wedge. Since the pattern is bullish, a move back inside the wedge (and especially a break below it) invalidates the setup.

• Why it's useful: This allows for a clear calculation of risk. The converging nature of the wedge often allows for a tighter stop-loss compared to the projected target, creating the potential for outstanding risk-to-reward ratios.

Practical Trading Example (Reversal Context)

1. Identify the Pattern:

   • Stock XYZ has been in a downtrend. It begins to form lower highs and lower lows, but the range between them is consistently narrowing, forming a clear Falling Wedge. Volume declines during the formation.

2. Entry & Risk Management:

   • Entry Signal: The price breaks above the upper trendline of the wedge at $30 on a massive surge in volume. You enter a long position at $30.50.

   • Stop-Loss: You place your stop-loss order at $28.90, just below the lower wedge trendline. Your total risk per share is $1.60.

3. Profit Target:

   • Measuring the Pattern: The initial height of the wedge is $8 (e.g., from $35 to $27).

   • Setting the Target: You project this $8 upward from the breakout point at $30. Your price target is $38.

   • Your potential profit per share is $7.50 ($38 - $30.50).

4. Reward-to-Risk Analysis:

   • Potential Reward: $7.50

   • Potential Risk: $1.60

   • This is a 4.7:1 reward-to-risk ratio. This is an excellent and high-probability setup.

Falling Wedge vs. Other Patterns

• vs. Descending Triangle: A Descending Triangle has a flat support level and descending highs. A Falling Wedge has both descending highs and descending lows (that converge). The triangles are more purely bearish, while the wedge is a bullish pattern.

• vs. Flag/Pennant: Flags and pennants are also continuation patterns but are typically smaller, tighter, and form much faster than a wedge. Wedges represent a longer period of consolidation and momentum shift.

Crucial Limitations and Tips for Use

• Volume is CRITICAL: The pattern's reliability is heavily dependent on volume confirmation.

  • During the Wedge: Volume should noticeably contract.

  • On the Breakout: Volume must expand significantly. A low-volume breakout is a major red flag and suggests a lack of buyer commitment.

• False Breakouts: The price may fake a breakout and then slide back into the wedge. This is why a stop-loss is mandatory. Waiting for a confirmed close above the trendline, not just an intraday spike, can help filter false signals.

• Pattern Duration: Falling Wedges can take several weeks or months to form. The longer the consolidation, the more significant the eventual breakout tends to be.

• Context Matters: A Falling Wedge is more significant as a reversal signal after a prolonged downtrend. As a continuation pattern, it's a powerful "bull flag" type setup.

Summary: Why the Falling Wedge is Useful

In essence, the Falling Wedge is useful because it provides a complete, high-probability trade blueprint:

• Narrative: It tells a story of weakening selling pressure and the building of potential energy for a bullish move.

• Signal: A precise breakout level for a long entry.

• Target: A measurable profit objective.

• Risk Management: A logical stop-loss level.

It allows traders to identify moments of equilibrium that are likely to resolve in a strong directional move, providing opportunities with clearly defined risk and high potential reward.

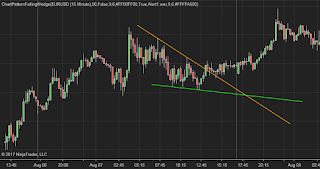

This indicator will automatically detect a Falling Wedge chart pattern.

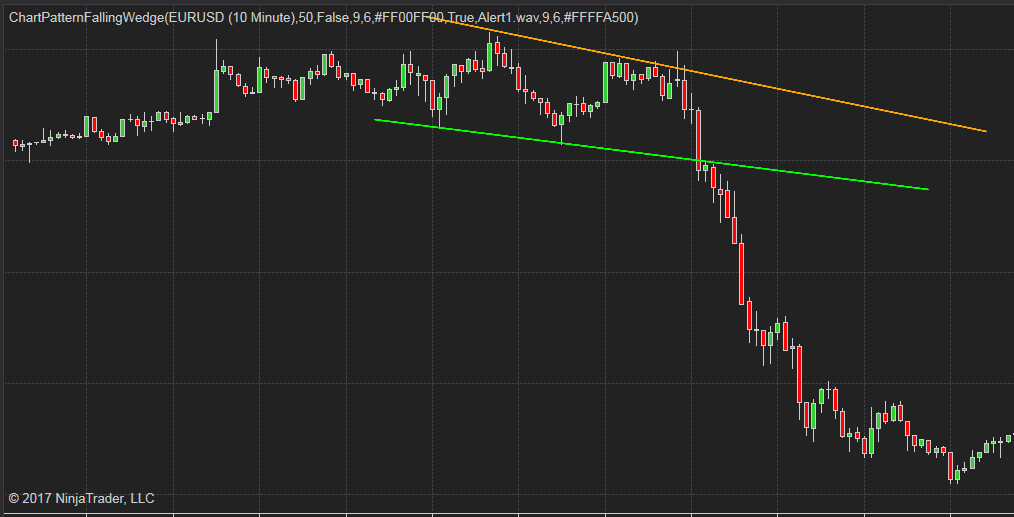

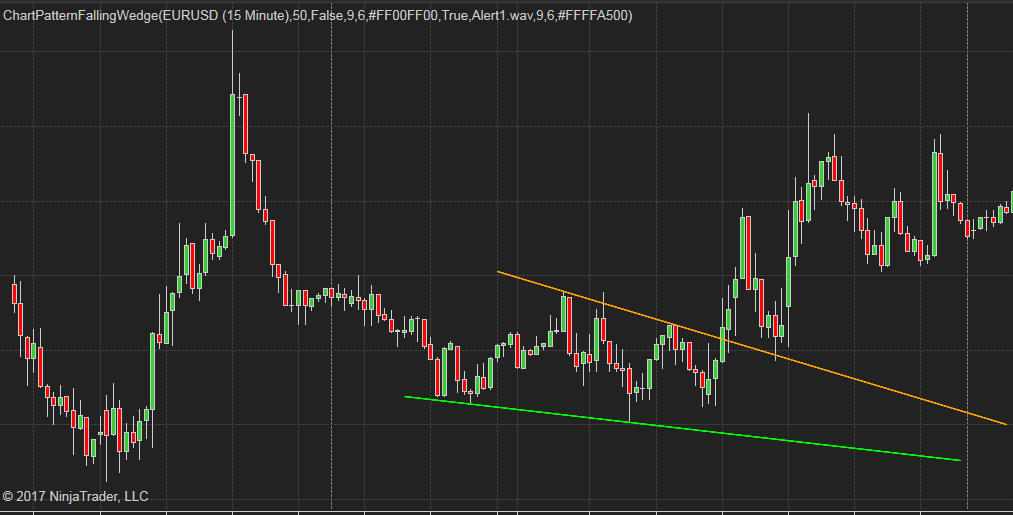

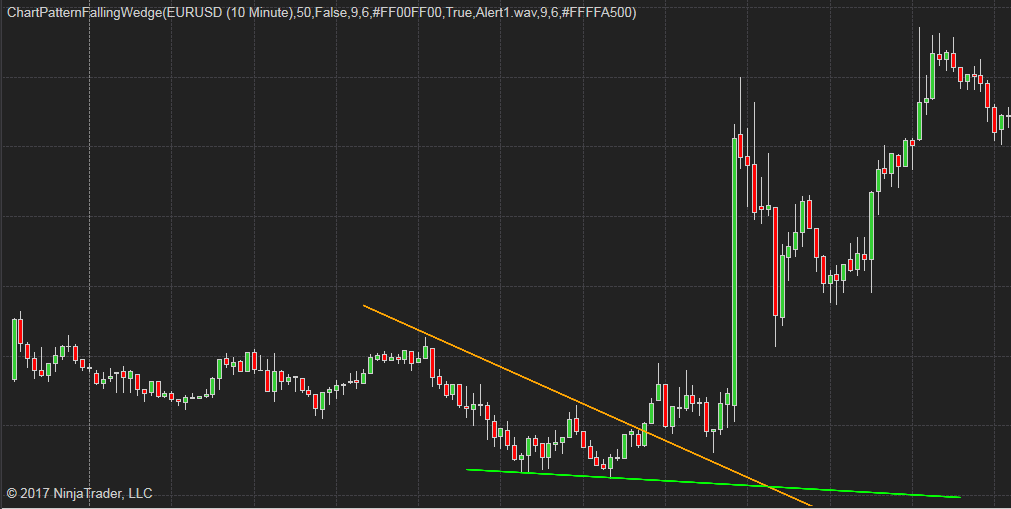

It will draw two trend lines of the Falling Wedge on the chart when the pattern is formed.



Features:



1.     Drawing Falling Wedge chart pattern for both real-time and historical data.
2.     Adjustable length of pattern legs.
3.     Using different combination of parameters, you can easily identify the Falling Wedge pattern in short term, midterm and long term.
4.     It works on most of the time frames and chart types, including: minutes, daily, weekly, monthly, tick, renko, range, Heiken Ashi, etc.
5.     Adjustable length of extension lines.
6.     Switch for showing the latest pattern only or show all history patterns found on chart.
7.     Select different sound alert files with switch.
8.     Editable trend line color.

There is a plot that can be used from other NinjaScript, such as Strategy and Market Analyzer.
They will show up on current bar, no delay, no repaint or back-paint.

In default, the color is transparent, if you need to see the plots on the chart, just change its color to your desired ones.



Click an image to view at full size.
