Auto trend line indicator and Market Analyzer with crossover alert for NinjaTrader 8 for 1 Year license.

Auto trend line indicator and Market Analyzer with crossover alert for NinjaTrader 8

Please note that this purchase is a  1-Year license. About License renew.

The indicator will automatically plot the upper and lower trend lines based on the most recent swing points. It works on all timeframes that officially supported by Ninjatrader 8.

Both indicator and Market Analyzer will alert on the following conditions.

1. Price Cross above upper trend line.
2. Price Cross below lower trend line.
3. Price Cross above lower trend line.
4. Price Cross below upper trend line.

The video below shows how it plots in real time, please note that I used 50x fast-forward in the replay.

Inputs:

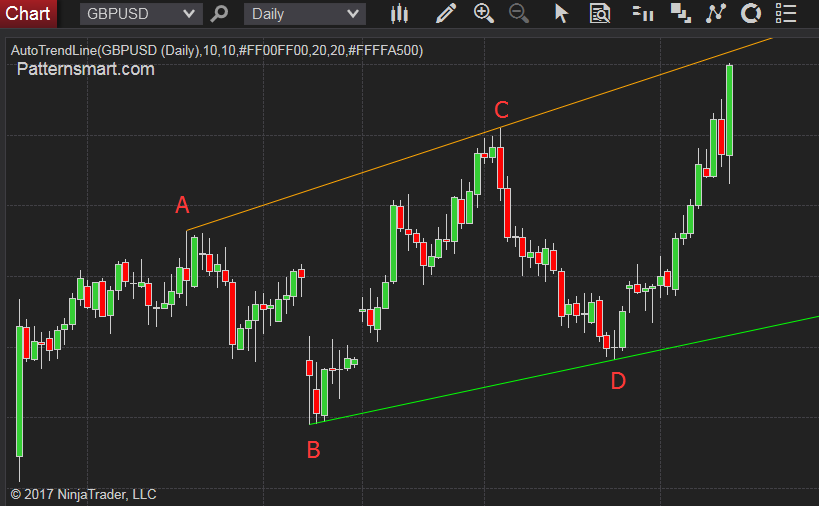

• Upper Right Strength: the number of bars on the left and right side of the peak C.
• Upper Left Strength: the number of bars on the left and right side of the peak A.
• Lower Right Strength: the number of bars on the left and right side of the trough D.
• Lower Left Strength: the number of bars on the left and right side of the trough B.

"Alert rearm seconds" is the number of seconds an alert will rearm.

For example, if you set it to 90, the alert will not be triggered within the next 90 seconds.

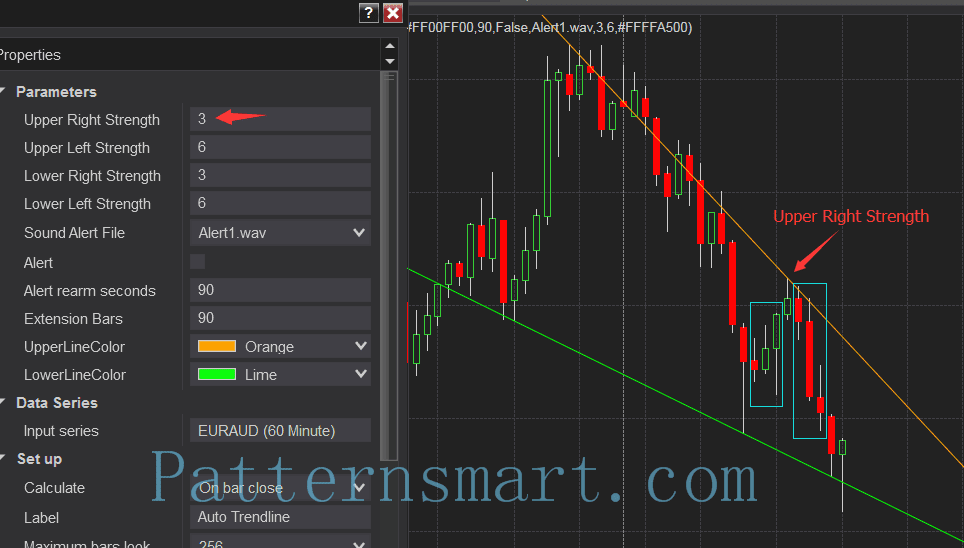

The Strength input is the number of bar on both sides of a swing point, for example, if we set Upper Right Strength to 3 as shown in the image below, it means that there must be at least 3 bars' high is lower than the Upper Right swing point's high on both sides.

The same mechanism also apply to other Strength inputs.

There are 4 plots that can be used from other NinjaScript, such as Strategy and Market Analyzer.
They will show up on current bar, no delay, no repaint or back-paint.

In default, the color is transparent, if you need to see the plots on the chart, just change its color to your desired ones.

For example, I changed the color of plot "Breakup Upper line" to cyan, as shown in the picture below.

Now you will be able to see all the "Breakup Upper line" signal as "cross" above the bars.
Please note that, it will keep both of the most recent and the previous crossover signal plot on the chart as shown in below.


The Market Analyzer makes possible to track price action related to trend lines in any timeframe.

You may want to check this link (How to use ninjatrader Market Analyzer) if you are not familiar with Market Analyzer.

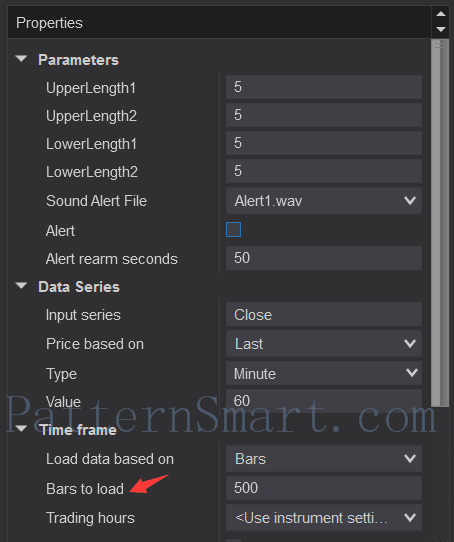

The inputs are similar in the Market Analyzer add-on, just make sure you load enough bars, the number of bars to load should be at least 500.

You can add more than one column with different settings, the following pic is an example of two timeframes in two columns.

You can add more than one indicator with different inputs to the chart.

The following screenshots are taken randomly.

Updated a filter for Auto trend line indicator and Market Analyzer, now you will be able to use it as a scan as well. Please note that AutoTrendLineFilter doesn't have any built-in alert as AutoTrendLineMAC.

You can find both AutoTrendLineFilter and AutoTrendLineMAC under the Columns, not from the indicator.




There are 5 preset conditions in AutoTrendLineFilter which you can use.

+2 =   Above upper trend line
+1 =  Cross above upper trend line
  0 =  Inside two trend lines
 -1 =  Cross below lower trend line
 -2 =   Below lower trend line

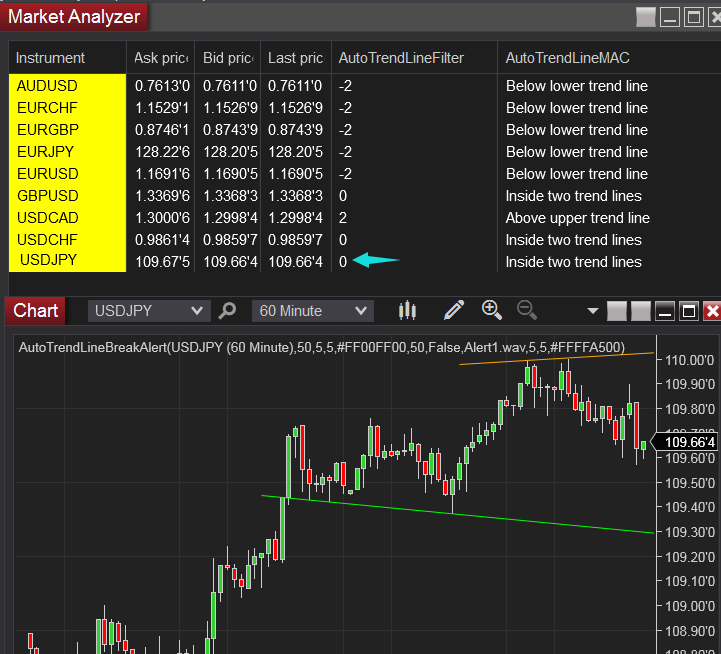

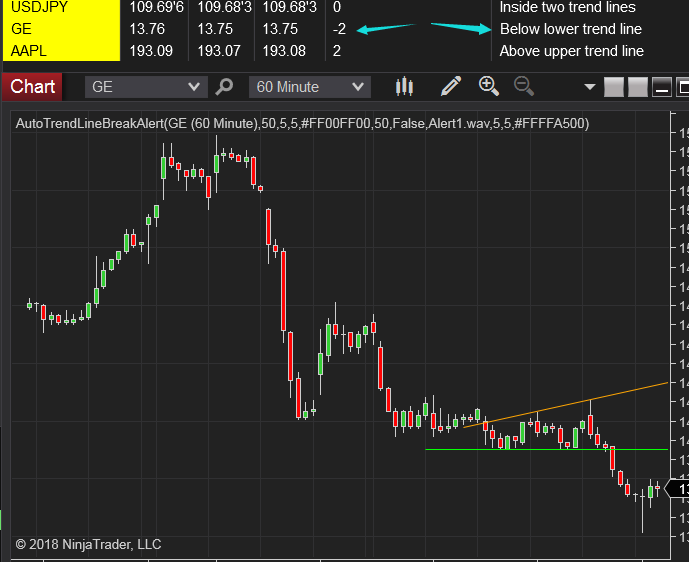

The following pics are examples.
